REST API

The REST API lets you manage product groups outside the app’s admin UI. Use it for catalog migrations, bulk imports from external sources, or syncing with a PIM. All endpoints are HTTPS, JSON, and authenticated with two headers.

Note

The REST API is available on the Premium plan. Development stores get full API access for free.

Base URL

https://api.colorswatchesapp.com/v1

Authentication

Every request needs two headers:

Header	Value
Shop-Domain	Your full Shopify domain, e.g. your-store.myshopify.com
Authorization	Token token=YOUR_API_TOKEN

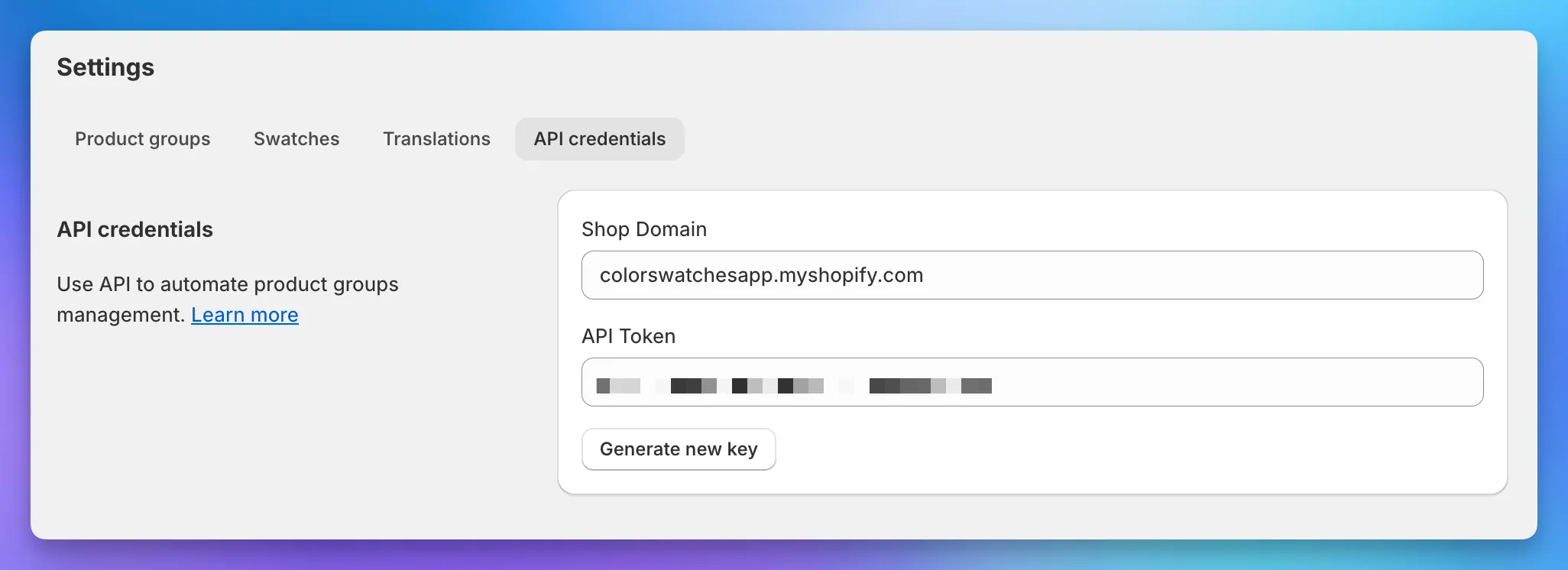

Generate a token in the app under Settings → API credentials → Generate new key. The previous token stops working immediately when you generate a new one.

To follow along with the cURL examples below, export your credentials as environment variables:

export SHOP_DOMAIN=your-store.myshopify.com
export API_TOKEN=paste-your-token-here

Rate limits

Up to 60 requests per minute, per shop. Past that, requests return 429 Too Many Requests. There are no remaining-quota headers, so throttle client-side when running bulk imports.

Errors

Error responses are JSON with an error field:

{ "error": "Bad credentials" }

Common status codes:

Code	Meaning
401	Missing or invalid Authorization token
402	Shop is not on the Premium plan
404	Resource not found (wrong group ID, missing shop)
422	Validation failed (e.g. missing required field, bad hex color)
429	Rate limit exceeded

Pagination

List endpoints return paginated results with an RFC 5988 Link header containing URLs for the first, next, and last pages:

rel="first" -> /v1/groups.json?page=1
rel="next"  -> /v1/groups.json?page=2
rel="last"  -> /v1/groups.json?page=12

Follow the next URL until it’s no longer present in the header.

Endpoints

List groups

GET /groups.json

curl -i \
  -H "Shop-Domain: $SHOP_DOMAIN" \
  -H "Authorization: Token token=$API_TOKEN" \
  https://api.colorswatchesapp.com/v1/groups.json

Returns an array of groups. Use -i to see the Link header for pagination.

Get a single group

GET /groups/{GROUP_ID}.json

curl \
  -H "Shop-Domain: $SHOP_DOMAIN" \
  -H "Authorization: Token token=$API_TOKEN" \
  https://api.colorswatchesapp.com/v1/groups/2.json

Create a group

POST /groups.json

curl \
  -H "Shop-Domain: $SHOP_DOMAIN" \
  -H "Authorization: Token token=$API_TOKEN" \
  -H "Content-Type: application/json" \
  -d '{
    "title": "Backpack",
    "option_name": "Color",
    "products_attributes": [
      {
        "shopify_id": 7453910991090,
        "swatch_name": "Black",
        "swatch_type": "one_color",
        "color_one": "#000000"
      }
    ]
  }' \
  https://api.colorswatchesapp.com/v1/groups.json

Group fields:

Field	Required	Description
title	Yes	Group title, used internally
option_name	No	Display name for the swatch group. Defaults to Color
position	No	Order within the widget when a product belongs to several groups
option_name_translations	No	Array of {locale, market_id, value} translations. See Translations
products_attributes	No	Array of products. See fields below

products_attributes fields:

Field	Required	Description
shopify_id	Yes	Shopify product ID. Entries without one are silently dropped
swatch_name	Yes	Display name on the swatch
swatch_type	Yes	One of one_color, two_colors, custom_image, product_image, image_with_text, pill
color_one	Conditional	Hex color. Required when swatch_type is one_color or two_colors
color_two	Conditional	Second hex color. Required when swatch_type is two_colors
image_url	Conditional	Public URL to an image. Required when swatch_type is custom_image or image_with_text
position	No	Position within the swatch list
swatch_name_translations	No	Array of {locale, market_id, value} translations. See Translations

Update a group

PATCH /groups/{GROUP_ID}.json

curl -X PATCH \
  -H "Shop-Domain: $SHOP_DOMAIN" \
  -H "Authorization: Token token=$API_TOKEN" \
  -H "Content-Type: application/json" \
  -d '{
    "title": "New Title",
    "option_name": "Color",
    "products_attributes": [
      {
        "shopify_id": 7453911089394,
        "swatch_name": "White",
        "swatch_type": "one_color",
        "color_one": "#ffffff"
      }
    ]
  }' \
  https://api.colorswatchesapp.com/v1/groups/9.json

Accepts the same fields as Create a group. Each entry in products_attributes also supports two update-only fields: id (the existing product’s internal ID) and _destroy (set to "1" to remove that product).

products_attributes is additive: entries without id create new products, entries with id update existing ones, and entries with id plus "_destroy": "1" remove them. Products not mentioned in the array are left alone. To touch a single product without listing the rest, use the dedicated endpoints below.

{
  "products_attributes": [
    { "shopify_id": 7453910991090, "swatch_name": "Red", "swatch_type": "one_color", "color_one": "#ff0000" },
    { "id": 42, "swatch_name": "Navy", "swatch_type": "one_color", "color_one": "#001f3f" },
    { "id": 43, "_destroy": "1" }
  ]
}

Delete a group

DELETE /groups/{GROUP_ID}.json

curl -X DELETE \
  -H "Shop-Domain: $SHOP_DOMAIN" \
  -H "Authorization: Token token=$API_TOKEN" \
  https://api.colorswatchesapp.com/v1/groups/9.json

Removes the group and clears swatch metafields from its products.

Add a product to a group

POST /shopify_products/{SHOPIFY_ID}/add_to_group.json

curl \
  -H "Shop-Domain: $SHOP_DOMAIN" \
  -H "Authorization: Token token=$API_TOKEN" \
  -H "Content-Type: application/json" \
  -d '{
    "group": { "title": "Backpack" },
    "swatch_name": "Black",
    "swatch_type": "one_color",
    "color_one": "#000000"
  }' \
  https://api.colorswatchesapp.com/v1/shopify_products/7453911089394/add_to_group.json

The group is identified by title and created if it doesn’t exist. If the product already belongs to a different group, it gets moved into the new one. Empty source groups are deleted.

Top-level fields:

Field	Required	Description
group	Yes	Group object. See fields below
swatch_name	Yes	Display name on the swatch
swatch_type	Yes	One of one_color, two_colors, custom_image, product_image, image_with_text, pill
color_one	Conditional	Hex color. Required when swatch_type is one_color or two_colors
color_two	Conditional	Second hex color. Required when swatch_type is two_colors
image_url	Conditional	Public URL to an image. Required when swatch_type is custom_image or image_with_text
position	No	Position within the swatch list
swatch_name_translations	No	Array of {locale, market_id, value} translations. See Translations

group fields:

Field	Required	Description
title	Yes	Group title. Identifies an existing group, or names a new one
option_name	No	Display name for the swatch group. Defaults to Color
option_name_translations	No	Array of {locale, market_id, value} translations. See Translations

Remove a product from a group

POST /shopify_products/{SHOPIFY_ID}/remove_from_group.json

curl -X POST \
  -H "Shop-Domain: $SHOP_DOMAIN" \
  -H "Authorization: Token token=$API_TOKEN" \
  https://api.colorswatchesapp.com/v1/shopify_products/7453911089394/remove_from_group.json

If the group ends up empty, it’s deleted too.

Translations

To set translated values for option names or swatch names, include option_name_translations (on the group) or swatch_name_translations (on each product) when creating or updating:

{
  "title": "Backpack",
  "option_name": "Color",
  "option_name_translations": [
    { "locale": "fr", "value": "Couleur" },
    { "locale": "de", "value": "Farbe" }
  ],
  "products_attributes": [
    {
      "shopify_id": 7453910991090,
      "swatch_name": "Black",
      "swatch_name_translations": [
        { "locale": "fr", "value": "Noir" },
        { "locale": "de", "value": "Schwarz" }
      ],
      "swatch_type": "one_color",
      "color_one": "#000000"
    }
  ]
}

Each translation entry takes a locale (required) and an optional market_id for market-scoped overrides. Pass an empty array to clear translations for a field.
